Classifying Flow Equations

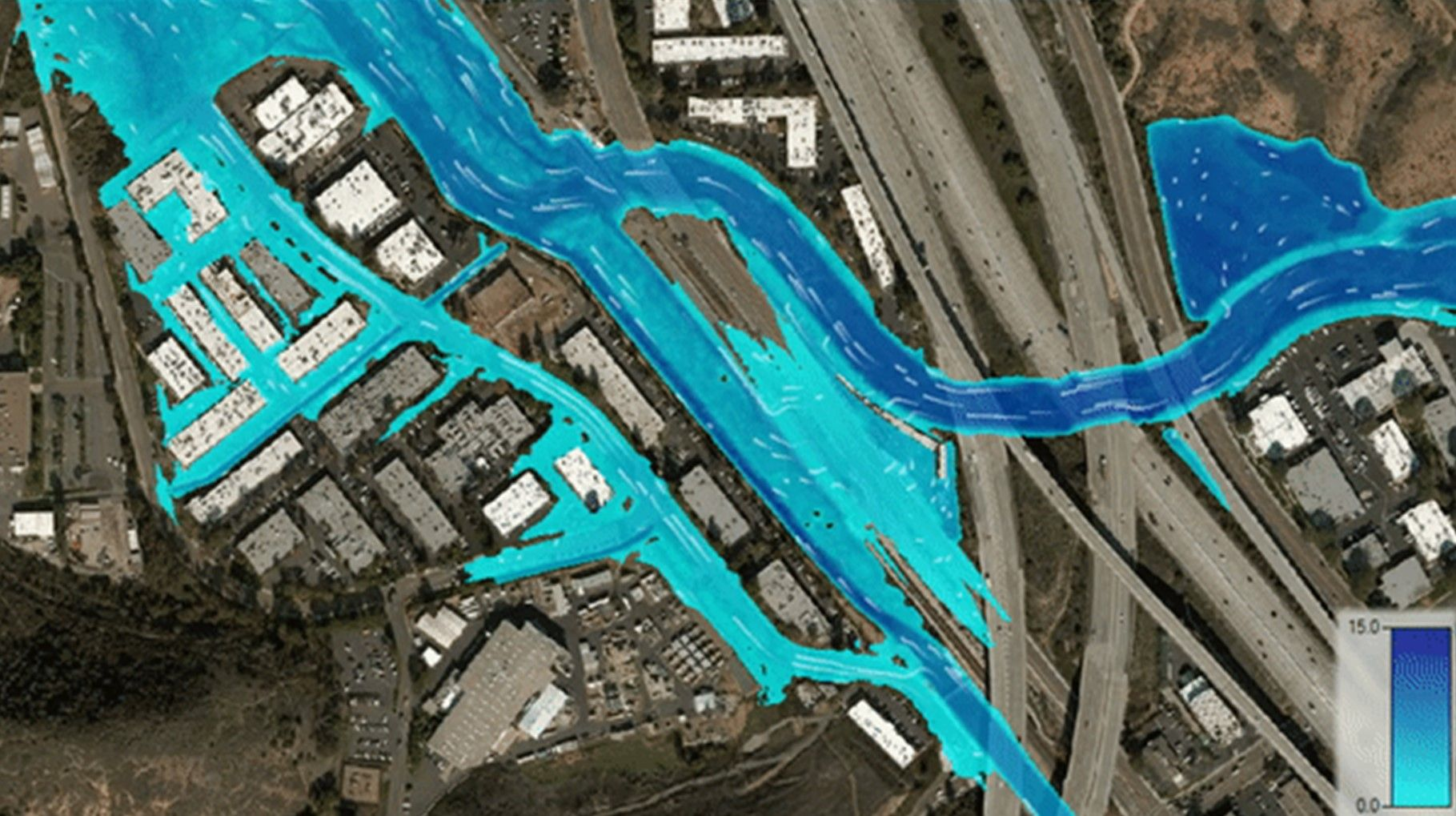

Water problems are represented mathematically by differential equations. Examples of such problems or processes are propagation of waves in a river channel, pollutant transport, and reservoir operations.

Classification criteria

Differential equations are classified taking into account several criteria:

• Dimension of the unknown function:
  • ordinary differential equation (ODE), when the unknown is a function of one independent variable only, e.g. $u(t)$
  • partial differential equation (PDE), when the unknown is a function of multiple independent variables, e.g. $u(t, x, y)$
• Number of equations: a single differential equation, or a system of differential equations.
• Order: the highest order of the derivative that appears in the equation — an equation is of $n$-th order if the highest derivative it contains is the $n$-th derivative.
• Linearity: linear, when all terms are linear in the unknown function and its derivatives; non-linear, when linearity does not hold.

The general second-order linear PDE

In water-related problems, most frequently the 2nd order, linear PDEs with two independent variables (homogeneous or nonhomogeneous) are used. If the two independent variables are assumed to be $x$ and $t$, the PDE is written as:

$A(x,t)\frac{\partial^2 u}{\partial x^2} + B(x,t)\frac{\partial^2 u}{\partial x \partial t} + C(x,t)\frac{\partial^2 u}{\partial t^2} = D(x,t)\frac{\partial u}{\partial x} + E(x,t)\frac{\partial u}{\partial t} + F(x,t)u(x,t) + G(x,t)$

where the coefficients $A(x,t) \ldots G(x,t)$ may be functions of $x$, $t$, or both, or they may be constants.

Elliptic, hyperbolic, and parabolic PDEs

The second-order PDE has a discriminant defined as:

$\Delta = [B(x,t)]^2 - 4 \cdot A(x,t) \cdot C(x,t)$

Depending on the sign of the discriminant $\Delta$, the PDE can be classified as:

• Elliptic PDEs, if $\Delta < 0$: PDEs with smooth solutions, easy to solve.
• Hyperbolic PDEs, if $\Delta > 0$: solutions may have discontinuities, usually difficult to solve computationally.
• Parabolic PDEs, if $\Delta = 0$: may have features of hyperbolic and elliptic PDEs combined.

Each type of equation describes a certain kind of physical phenomenon:

• Elliptic PDEs describe processes that are in steady state, time-independent (e.g., steady-state aquifer flow, backwater curves).
• Hyperbolic PDEs describe time-dependent, conservative physical processes (e.g., advection/convection), that are in unsteady state and not evolving towards a steady state.
• Parabolic PDEs describe time-dependent, dissipative physical processes (e.g., diffusion, transient aquifer flow) that are evolving towards a steady state.
